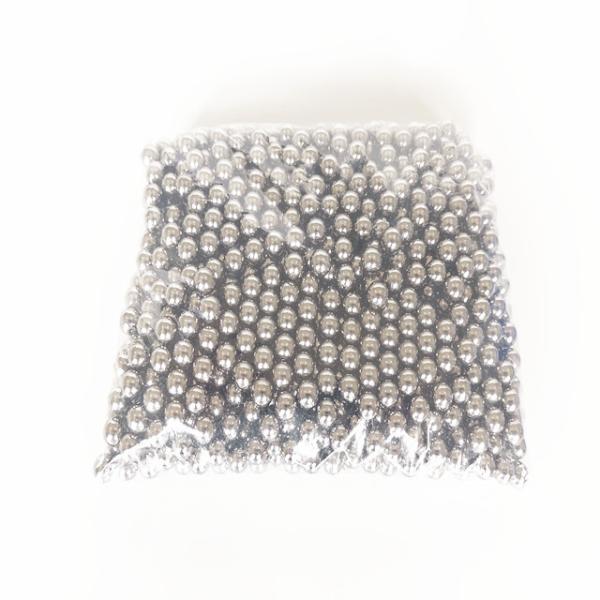

High Hardness 5.556mm 7.144mm 8.731mm 9.525mm 12mm 15mm Tungsten
Carbide Ball
Tungsten ball Performance
1. tungsten ball High strength, high wear resistance, high
precision, high temperature resistant, corrosion resistant.
2. tungsten ball are mainly used for the sealing of valves of oil
pumps in petroleum industry's sand containing wells, viscous oil
wells, sea oil wells and high pressure sulfur resistant oil wells,
etc.
3. tungsten ball are used with compatible cemented carbide valve
seats.
4. The surface tungsten ball finish, tolerance class and tolerances
of dimensions have respectively reached the standards of the
machine industry: G5, G10, G16, G40 and G100 of JB/T 9145-1999.
5. Precision machined cemented tungsten ball of other grades and
specifications are also available based on customers' demands.
6. Compatible high precision valve seats can also be made
available.
Grade List
Cobalt Binder Grades |
|
Grade | Binder(wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG3 | 3 | 15.30 | 91.00 | 1180 |
YG6 | 6 | 15.10 | 92.00 | 1420 |
YG6X | 6 | 15.10 | 91.00 | 1600 |
YG8 | 8 | 14.90 | 90.00 | 1600 |
YG10 | 10 | 14.70 | 89.00 | 1900 |
YG10X | 10 | 14.70 | 89.50 | 2200 |
YG15 | 15 | 14.20 | 87.00 | 2100 |
YG20 | 20 | 13.70 | 85.50 | 2500 |
YG20C | 20 | 13.70 | 82.00 | 2200 |
YG30 | 30 | 12.80 | 82.00 |
|
| Ball dimension (mm) |
| D±1.27(mm) |
| 15.88 |
| 19.05 |
| 23.83 |
| 28.58 |
| 31.75 |
| 34.93 |
| 42.88 |
| 57.15 |
Model/Item | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) | 15.88
(0.625in) | 19.05
(0.75in) | 23.83
(0.938in) | 28.58
(1.125in) | 31.75
(1.25in) | 34.93
(1.375in) | 42.88
(1.688in) | 57.15
(2.25in) |
Seat-ID
± 0.050 (± 1.27) | 11.68
(0.46in) | 13.97
(0.55in) | 17.02
(0.67in) | 20.96
(0.825in) | 24.38
(0.96in) | 26.92
(1.06in) | 33.27
(1.31in) | 43.18
(1.7in) |
Seat-OD
+0.000/-0.005
(+0.00/-0.13) | 20.14
(0.793in) | 23.32
(0.918in) | 29.67
(1.168in) | 35.26
(1.388in) | 37.54
(1.478in) | 43.69
(1.72in) | 51.05
(2.01in) | 78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 19.05
(0.750in) |
| 10600 | 12500 | 15000 | 17500 | 20000 | 22500 | 25000 | 37500 |
D
(customized) | Inch | 0.625 | 0.725 | 0.938 | 1.125 | 1.250 | 1.375 | 1.688 | 2.250 |
| mm | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 |
H -0.020/-0.010
(+0.51/0.25) | Inch | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.750 |
| mm | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 19.05 |
FZ +0.000/-0.031
(+0.00/-0.78) | Inch | 0.767 | 0.892 | 1.11 | 1.331 | 1.421 | 1.631 | 1.921 | 2.950 |
| mm | 19.48 | 22.66 | 28.22 | 33.81 | 36.09 | 41.43 | 48.79 | 74.93 |
OD +0.000/-0.005
(-0.00/-0.13) | Inch | 0.793 | 0.918 | 1.168 | 1.388 | 1.478 | 1.720 | 2.010 | 3.072 |
| mm | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 |
ID +/-0.050
(+/-1.27) | Inch | 0.460 | 0.550 | 0.670 | 0.825 | 0.960 | 1.060 | 1.310 | 1.700/1.800 |
| mm | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18/47.75 |
Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) |
15.88
(0.625in) |
19.05
(0.75in) |
23.83
(0.938in) |
28.58
(1.125in) |
31.75
(1.25in) |
34.93
(1.375in) |
42.88
(1.688in) |
57.15
(2.25in) |
Seat-ID
± 0.050
( ± 1.27) |
11.68
(0.46in) |
13.97
(0.55in) |
17.02
(0.67in) |
20.96
(0.825in) |
24.38
(0.96in) |
26.92
(1.06in) |
33.27
(1.31in) |
43.18
(1.7in) |
Seat-OD
+0.000/-0.005
+0.00/-0.13 |
20.14
(0.793in) |
23.32
(0.918in) |
29.67
(1.168in) |
35.26
(1.388in) |
37.54
(1.478in) |
43.69
(1.72in) |
51.05
(2.01in) |
78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.750
(19.05in) |
