5mm 6mm 10mm Tungsten Carbide Ball For Of 40mm Bearing

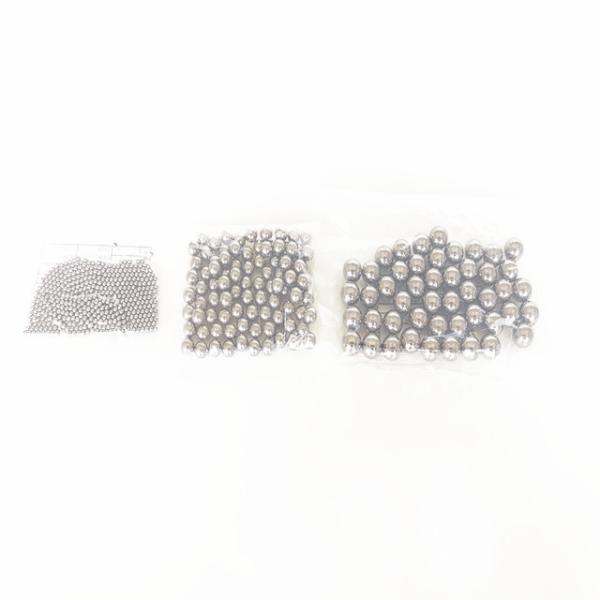

Tungsten carbide balls
Tungsten carbide balls are used in applications requiring extreme
hardness and resistance to wear and abrasion; and are able to
withstand hard shocks and impacts. Tungsten carbide balls are made
with 6% nickel binder or 9% nickel binder. Common applications
include ball valves, flow meters, ball bearings, linear bearings,
tungsten carbide grinding balls, and ball screws.
Description of tungsten ball
Tungsten carbide balls are used where extreme hardness and wear
resistance is required; in such applications as bearings, ball
screws, valves and flow meters.
Grade List
Cobalt Binder Grades |
|
Grade | Binder(wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG3 | 3 | 15.30 | 91.00 | 1180 |
YG6 | 6 | 15.10 | 92.00 | 1420 |
YG6X | 6 | 15.10 | 91.00 | 1600 |
YG8 | 8 | 14.90 | 90.00 | 1600 |
YG10 | 10 | 14.70 | 89.00 | 1900 |
YG10X | 10 | 14.70 | 89.50 | 2200 |
YG15 | 15 | 14.20 | 87.00 | 2100 |
YG20 | 20 | 13.70 | 85.50 | 2500 |
YG20C | 20 | 13.70 | 82.00 | 2200 |
YG30 | 30 | 12.80 | 82.00 |
|
| Ball dimension (mm) |
| D±1.27(mm) |
| 15.88 |
| 19.05 |
| 23.83 |
| 28.58 |
| 31.75 |
| 34.93 |
| 42.88 |
| 57.15 |
Model/Item | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) | 15.88
(0.625in) | 19.05
(0.75in) | 23.83
(0.938in) | 28.58
(1.125in) | 31.75
(1.25in) | 34.93
(1.375in) | 42.88
(1.688in) | 57.15
(2.25in) |
Seat-ID
± 0.050 (± 1.27) | 11.68
(0.46in) | 13.97
(0.55in) | 17.02
(0.67in) | 20.96
(0.825in) | 24.38
(0.96in) | 26.92
(1.06in) | 33.27
(1.31in) | 43.18
(1.7in) |
Seat-OD
+0.000/-0.005
(+0.00/-0.13) | 20.14
(0.793in) | 23.32
(0.918in) | 29.67
(1.168in) | 35.26
(1.388in) | 37.54
(1.478in) | 43.69
(1.72in) | 51.05
(2.01in) | 78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 19.05
(0.750in) |
| 10600 | 12500 | 15000 | 17500 | 20000 | 22500 | 25000 | 37500 |
D
(customized) | Inch | 0.625 | 0.725 | 0.938 | 1.125 | 1.250 | 1.375 | 1.688 | 2.250 |
| mm | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 |
H -0.020/-0.010
(+0.51/0.25) | Inch | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.750 |
| mm | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 19.05 |
FZ +0.000/-0.031
(+0.00/-0.78) | Inch | 0.767 | 0.892 | 1.11 | 1.331 | 1.421 | 1.631 | 1.921 | 2.950 |
| mm | 19.48 | 22.66 | 28.22 | 33.81 | 36.09 | 41.43 | 48.79 | 74.93 |
OD +0.000/-0.005
(-0.00/-0.13) | Inch | 0.793 | 0.918 | 1.168 | 1.388 | 1.478 | 1.720 | 2.010 | 3.072 |
| mm | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 |
ID +/-0.050
(+/-1.27) | Inch | 0.460 | 0.550 | 0.670 | 0.825 | 0.960 | 1.060 | 1.310 | 1.700/1.800 |
| mm | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18/47.75 |
Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) |
15.88
(0.625in) |
19.05
(0.75in) |
23.83
(0.938in) |
28.58
(1.125in) |
31.75
(1.25in) |
34.93
(1.375in) |
42.88
(1.688in) |
57.15
(2.25in) |
Seat-ID
± 0.050
( ± 1.27) |
11.68
(0.46in) |
13.97
(0.55in) |
17.02
(0.67in) |
20.96
(0.825in) |
24.38
(0.96in) |
26.92
(1.06in) |
33.27
(1.31in) |
43.18
(1.7in) |
Seat-OD
+0.000/-0.005
+0.00/-0.13 |
20.14
(0.793in) |
23.32
(0.918in) |
29.67
(1.168in) |
35.26
(1.388in) |
37.54
(1.478in) |
43.69
(1.72in) |
51.05
(2.01in) |
78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.750
(19.05in) |
Production Process
FAQ
Q1: How can I place order?
A1: You can contact us by email about your order details, or place
order on line.
Q2: How can I pay you?
A2: After you confirm our PI, we will request you to pay. T/T (HSBC
bank) and Paypal, Western Union are the most usual ways we are
using.
Q3: What’s the order procedure?
A3: First we discuss order details, production details by email or
TM. Then we issue you an PI for your confirmation. You will be
requested to do pr -epaid full payment or deposit before we go into
production. After we get the deposit, we start to process the
order. We usually need 7-15 days if we don’t have the items in
stock. Before production has been finished, we will contact you for
shipment details, and the balance payment. After payment has been
settled, we start to prepare the shipment for you.
Q4: How do you take care when your clients received defective
products?
A4: replacement. If there are some defective items, we usually
credit to our customer or replace in next shipment.
Q5: How do you check all the goods in the production line?
A5: We have spot inspection and finished product inspection. We
check the goods when they go into next step production procedure.
