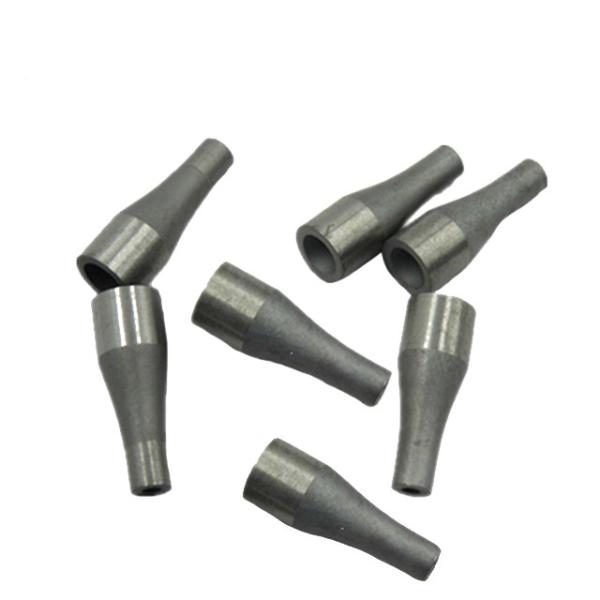

Customized High Precision Tungsten Carbide Sandblasting Nozzles
Factory supply t ungsten carbide sandblasting nozzle
Cemented carbide nozzle, also known as the tungsten carbide nozzle,
is mainly used in chemical industry, food, machinery, metallurgy,
architecture and other industries for pulverizing, derusting,
cleaning, atomization, etc. The hard alloy nozzles produced by our
company have a variety of specifications, processed and made with
high quality raw material. It has the characteristics of high
temperature resistance, corrosion resistance, abrasion resistance,
high precision and so on.
Application
The cemented carbide nozzles will be used mainly to PDC drill bits
and cone roller bits for flushing, cooling and lubricating drill
bit tips and cleaning stone chips in the well bottom with drilling
liquid in the working conditions of high pressure,vibration,sand
and slurry impacting during oil and natural gas prospecting.
Tungsten Carbide Nozzles for mining and oil field drilling bits as
carbide nozzles
--Long life supply
--Reliable quality
--various specifications available
Grade List
| Grade | Co (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 |
| Grade | Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) |
| XN100 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 1800 |
| XN101 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 2200 |
| XTN10 | 19.5-20.5 | 6.5-7.5 | 90.5-92.0 | 2800 |
| Grade | Co+Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) |
| XTT50 | 14.0-15.0 | 8.9-9.5 | 89.0-91.0 | 1600 |
| XTP10 | 7.0-9.0 | 11.5-13.0 | 89.5-91.0 | 1800 |
Details Of Tumgsten Carbide Nozzle
| Type | Dimension (mm) |
| φA ±0.25 | φB ±0.25 | φC ±0.25 | φD ±0.20 | φE ±0.20 | F ±1 | G ±1 | M ±1 | K ±0.5 |
| XP01-1 | 24.5 | 30.0 | 5.0 | 9.0 | 18.0 | 50.0 | 69.0 | 21.0 | 130.0 |
| XP01-2 | 24.5 | 30.0 | 8.0 | 12.5 | 20.0 | 50.0 | 69.0 | 21.0 | 140.0 |
| XP01-3 | 24.5 | 30.0 | 10.0 | 13.5 | 21.0 | 50.0 | 69.0 | 21.0 | 170.0 |
| XP01-4 | 24.5 | 30.0 | 13.0 | 19.5 | 27.0 | 50.0 | 69.0 | 21.0 | 226.0 |
| XP01-5 | 30.0 | 36.0 | 6.5 | 12.5 | 19.5 | 54.0 | 70.0 | 20.0 | 130.4 |
| XP01-6 | 30.0 | 36.0 | 8.0 | 12.5 | 12.5 | 54.0 | 70.0 | 20.0 | 141.0 |
| XP01-7 | 30.0 | 36.0 | 11.0 | 15.0 | 12.5 | 55.0 | 69.0 | 21.0 | 200.0 |
| Type | Dimension (mm) |
| φA ±0.25 | φB ±0.25 | φC ±0.20 | φD ±0.20 | φE ±0.25 | F ±2 | K ±0.5 |
| XP02-1 | 32.0 | 25.0 | 6.2 | 8.0 | 16.0 | 45.0 | 78.0 |
| XP02-2 | 32.0 | 25.0 | 8.0 | 10.0 | 18.0 | 45.0 | 78.0 |
| XP02-3 | 32.0 | 25.0 | 11.0 | 13.0 | 21.0 | 45.0 | 78.0 |
| XP02-4 | 38.0 | 32.0 | 6.2 | 6.2 | 16.0 | 45.0 | 80.0 |
| XP02-5 | 38.0 | 32.0 | 8.0 | 8.0 | 18.0 | 45.0 | 80.0 |
Product Application Scene
Production Process
Why choose us ?
1. We are Integration of Industry and Trade manufacturing tungsten
carbide series product,Widest product range, Best production
capability, Best quality control, Best Service, Competitive price.
2. 100% QC inspection before shipment.
3. Feedback within 24 hours and Good English Communication.
4. Good training export sales can give professional suggestion on
product.
5. Customized making according to your drawing papers.
6. Accept trial order and sample order.
7. Accept all payment terms of T/T, L/C, western union,
Paypal,Trade Assurance,etc.
8. Offer free samples under the condition of freight paid by
customer.
9. Survey Email of products usage will be sent timely to listen
your feedback,our aim is trying to make every customer satisfied
and we both sides WIN-WIN!
