Customiozed Casting Regulating Ball Valve Gate Valve Butterfly
Valve Seat For Oil/Water
Tungsten carbide balls and valve seats have the compositions of
tungsten carbide(WC) and Co or Ni or Mo additives. With high
compression strength, excellent wear resistance and well shock and
impact resistance, tungsten carbide balls and valve seats are
widely supplied as ball-rolling element in bearing industry, pump
valve spool for fluid seal, check valve for petroleum
digger,industrial sprayers to regulate the flow of fertilizers or
pesticides to crops.
Tungsten carbide balls can be also applied in a drastically
different application, it can be employed as pen balls due to their
inert chemical properties. Besides, in miniature flow control
devices, such as medical instrumentation and ink-jet printing,
tungsten carbide balls are also frequently used.
Applications
Widely used in where extreme hardness and wear resistance is
required, such as bearings, ball screws, valves and flow meters,
pen, spraying machines, pump, machinery parts, oil, hydrochloric
zcid lab, hardness measuring instrument, and so high-end industry.

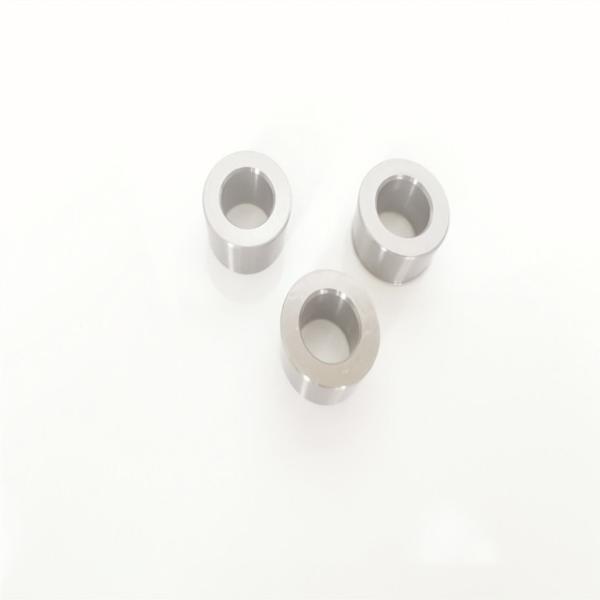

Features of tungsten valve seat
1. For sealing of valves of oil pumps in petroleum industry's sand
containing wells,viscous oil wells, sea oil wells, high pressure
sulfur resistant oil wells, compatible Cemented Carbide valve
seats, etc.
2. Various grades for cemented carbide balls/pellets can be
supplied according to customer's drawings.
3. The surface finish, tolerance class and tolerances of dimensions
have respectively reached the standards of the machine industry.
Application
Tungsten carbide ball was widely used in precision tools drawing
and punching,high precision bearings,high precision measuring
instrument and appratus,water pump and brake pump,and various
machinery sealing accessories part in high-tech industry.
Diameter
Dia. 2, 5, 7, 8, 10, 12mm (or 5/8, 3/4, 15/16, 1-1/8, 1-1/4, 1-3/8,
1-1/16, 2-1/4") and more.
Grade List
| Grade | WC% | CO% | Hardness (HRA) | Desnity (G/M³) | T.R.S (Mpa) | Metallographic analysis | Application |
| YG6 | 94% | 6% | 91 | 14.6-15.0 | 1700 | A02B02C02 | Widely used in all kinds of hardware industry, valve, bearing, die
casting , punching, grinding measurement. |
| YG6X | 94% | 6% | 92 | 14.6-15.0 | 1450 | A02B02C02 | Widely used in all kinds of hardware industry, valve, bearing, die
casting , punching, grinding measurement. |
| YG8 | 92% | 8% | 89 | 14.4-14.8 | 1800 | A02B02C02 | Widely used in valves,bearing, die casting , punching, grinding
measurement,hardness tester, petroleum, chemical industry,
aeronautics and astronautics.
|
Grade and applicaton for valve seat
| Grade | Co (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) | Application |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 | Wear-resistant |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 |
| XC300 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 2600 |
| XC301 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 3200 |
| Grade | Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) | Application |
| XN100 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 1800 | Corrosion-resistant |
| XN101 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 2200 |
| XN300 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2100 |
| XN301 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2400 |
| Seats dimension (mm) |
| D | d | H |
| 19.48 | 11.68 | 12.7 |
| 22.66 | 13.97 | 12.7 |
| 28.22 | 17.02 | 12.7 |
| 33.81 | 20.96 | 12.7 |
| 36.09 | 24.38 | 12.7 |
| 41.43 | 26.92 | 12.7 |
| 48.79 | 33.27 | 12.7 |
| 74.93 | 43.18 | 19.05 |
| Ball dimension (mm) |
| D±1.27(mm) |
| 15.88 |
| 19.05 |
| 23.83 |
| 28.58 |
| 31.75 |
| 34.93 |
| 42.88 |
| 57.15 |
Production Process
FAQ
Q1: How long is your delivery period?
A1: It depends on specific conditions. However, it could be 10 to
15 days on average.
Q2: Do you offer samples?
A2: Yes, we do offer samples. However, buyers need to pay for the
freight charge. In addition, whether samples are free or not
depends on the quantity you buy.
Q3: How do you pack the products?
A3: In general, we use wood, plastic or carton boxes. We also put
some soft materials inside to prevent possible damage on products.
Q4: How much advance payment do I need to make?
A4: If the products you buy are in stock, you need to make full
payment; if the products are out of stock, you need to make about
50 percent of full payment and then we will start the production
process. However, you still need to pay the rest of charges before
we deliver the products.
Q5: What kinds of payment do you accept?
A5: In addition to the patterns of payment shown above, you can
discuss with us about in which way you would like to pay.
Please contact us if you have any other questions.
