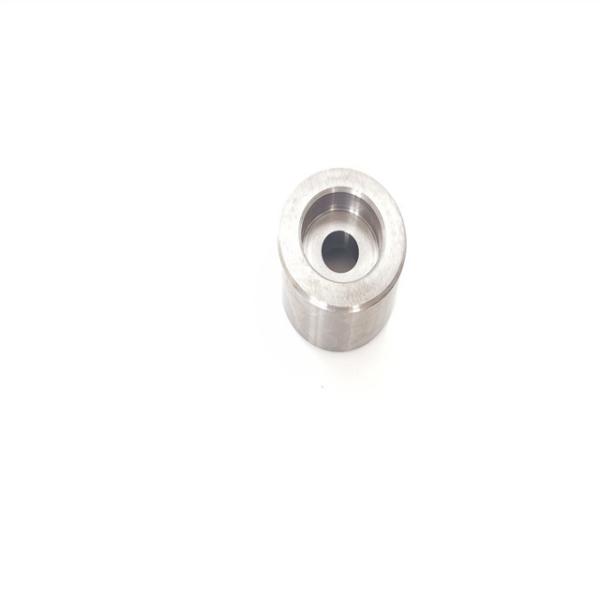

OEM/ODM Wear-resistance Corrosion Resistance Tungsten Carbide Valv
Seat
Tungsten carbide seats are used for various Oil Field Equipment and
Oilfield Valves such as Conventional Gas Lift Valves, Wireline
Retrivable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves
etc.
API Standard Cobalt Alloy Valve Seats and Valve Balls
1. Valve balls and valve seats are widely used in oil fields.
2. Valve Ball and Seat performance directly affects the use effect
and service life of the sucker rod pumps.
3. Each ball-and-seat combination is vacuum tested to ensure a
perfect seal is obtained in all positions of contact.
Main Features
1. Material: Stainless steel; Cobalt Alloy, cast; Cobalt
Alloy,Tungsten Carbide, Titanium Carbide .
2. Standard: API 11AX .
3. High resistance against corrosion and oxidation;
Balls made of tungsten carbide is also called hard alloy balls. It
is used for applications requiring extreme hardness and resistance
towear and abrasive, hard shocks and impacts.
The appliations includespecial valves, flow meters, recirculating
balls bearing screws, liner bearing and balls for ball point pens.
They are also used often for mining, as pivols and points of
comparations. They are als used for measurements anor colibrations
of holes and measurement checking devices.
Grade List
| Grade | ISO Code | Chemical Composition(%) | Physical Mechanical Properties (≥) | Application |
|
| WC | Co | Density g/cm3 | Hardness(HRA) | T.R.S N/mm2 |
|
| YG3 | K01 | 97 | 3 | 14.90 | 91.00 | 1180 | Suitable for finishing of cast iron,non-ferrous metals,alloys and
non-metallic materials,and semi-finishing vehicles for intermittent
cutting. |
| YG6 | K10 | 94 | 6 | 15.10 | 92.00 | 1420 | Finishing of chilled hard alloy cast iron and heat resistant alloy
steel and ordinary cast iron. |
| YG6X | K20 | 94 | 6 | 15.10 | 91.00 | 1600 | Cast iron, non-ferrous metals and alloys, non-metallic materials,
medium to cutting, semi-finishing and finishing. |
| YG8 | K20-K30 | 92 | 8 | 14.90 | 90.00 | 1600 | Suitable for casting of cast iron, non-ferrous metals and their
alloys and non-metallic materials, roughing of sections and rough
cutting. |
| YG10 | K40 | 90 | 10 | 14.70 | 89.00 | 1900 | Suitable for the production of drawing dies, wear parts and
stamping parts and cores for hard alloy automatic presses. |
| YG10X | K40 | 89 | 10 | 14.70 | 89.50 | 2200 | Suitable for small diameter micro drills, end mills, rotary boring
tools, etc. |
| YG15 | K30 | 85 | 15 | 14.70 | 87.00 | 2100 | Forging, perforating and stamping tools for steel bars and steel
tubes with high compression ratios and working under large
stresses. |
| YG20 | K30 | 80 | 20 | 13.70 | 85.50 | 2500 | Stamping die, stamping watch parts, musical instrument spring
piece. |
| YG20C | K40 | 80 | 20 | 13.70 | 82.00 | 2200 | punching battery case, toothpaste skin mold, small size steel ball,
screw, nut stamping die, hot rolling twist drill bit plate. |
| YG30 | G60 | 70 | 30 | 12.80 | 82.00 | 2750 | Production of standard parts, bearings, tools and other industries
for cold heading, cold punching, cold pressing die. |
Grade and applicaton for valve seat
| Grade | Co (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) | Application |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 | Wear-resistant |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 |
| XC300 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 2600 |
| XC301 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 3200 |
| Grade | Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) | Application |
| XN100 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 1800 | Corrosion-resistant |
| XN101 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 2200 |
| XN300 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2100 |
| XN301 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2400 |
| Seats dimension (mm) |
| D | d | H |
| 19.48 | 11.68 | 12.7 |
| 22.66 | 13.97 | 12.7 |
| 28.22 | 17.02 | 12.7 |
| 33.81 | 20.96 | 12.7 |
| 36.09 | 24.38 | 12.7 |
| 41.43 | 26.92 | 12.7 |
| 48.79 | 33.27 | 12.7 |
| 74.93 | 43.18 | 19.05 |
| Ball dimension (mm) |
| D±1.27(mm) |
| 15.88 |
| 19.05 |
| 23.83 |
| 28.58 |
| 31.75 |
| 34.93 |
| 42.88 |
| 57.15 |
Production Process
