Excellent EXW Price Customized Good Wear Resistance Tungsten
Carbidel Seal Ring
Application
Mechanical seal ring is one of biggest important wear parts in
tungsten carbide products.
We produce various types of tungsten carbide mechanical seal rings
like Plain Ring, T-shape, O-shape, U- type,face seal rings and per
clients requests.
We have rich experience in producing mechanical seal rings and
metal parts with tight tolerances. The biggest outer diameter of
the ring we can make it into 430mm.
We are an ISO certified carbide supplier,and expert in producing
OEM parts with excellent quality according to your specific
needs.Tungsten Carbide Seal Rings are used as Seal faces in pump
and seal, Compressors and Agitators. It is often applied in Oil
Refineries, Fertilizer Plants,Petrochemical
plants,Pharmaceutical/Drugs industries.
Tungsten Carbide Rings are usually made with Cobalt (Co) as binder
material. Nickel(Ni) Bonded Rings are also supplied.
We provide our clients with high quality Tungsten Carbide roll
rings and composite rolls for rolling wire rods and merchant bars.
The superior wear resistance characteristics of TC roll rings
provide you the highest pass performance in addition to the
excellent surface finish.
Tungsten carbide roll rings are the standard application in high
speed wire rod finishing block and is getting more popular in some
other hot and cold forming applications.
Tungsten carbide material has good conductivity, thermal
conductivity and corrosion resistance and high density of 16 g/cm3
to 18.5 g/cm3.Cemented carbide also has very good mechanical
strength, small coefficient of thermal conductivity, large
expansion coefficient and elastic coefficient.
Grade List
Cobalt Binder Grades |
|
Grade | Binder(wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG3 | 3 | 15.30 | 91.00 | 1180 |
YG6 | 6 | 15.10 | 92.00 | 1420 |
YG6X | 6 | 15.10 | 91.00 | 1600 |
YG8 | 8 | 14.90 | 90.00 | 1600 |
YG10 | 10 | 14.70 | 89.00 | 1900 |
YG10X | 10 | 14.70 | 89.50 | 2200 |
YG15 | 15 | 14.20 | 87.00 | 2100 |
YG20 | 20 | 13.70 | 85.50 | 2500 |
YG20C | 20 | 13.70 | 82.00 | 2200 |
YG30 | 30 | 12.80 | 82.00 | 2750 |

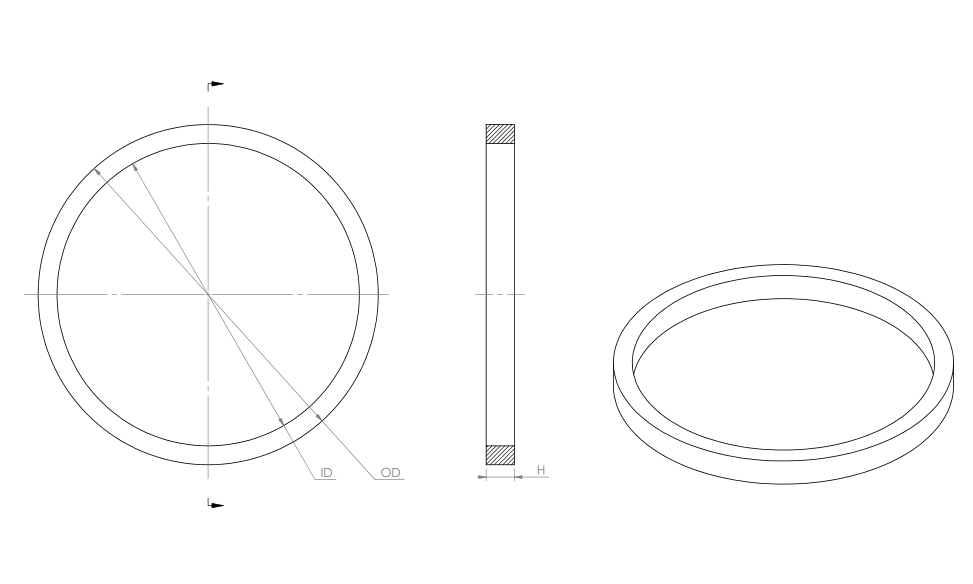

Drawing
Production Process
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is
25-35 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<1000USD, 100% in advance. Payment>1000USD, 30%
T/T in advance ,balance before shipment.
