YG6,YG8,YG10 Customized Tungsten Carbide Nozzle Tungsten Carbide
Water Jet Nozzle
Tungsten Carbide Water Jet Nozzle
Features
Need less maintenance, High hardness, low density and excellent
wear and anti-corrosion,
Usage
Tungsten carbide water jet nozzle has been widely used inwater jet
and shot peening equipment, offering a long life with optimum air
and abrasive use.
Cemented carbide nozzle is mainly used in chemical, food,
machinery, metallurgy, construction and other industries to produce
powder, remove rust, clean, atomize, etc.. There are more than 800
specifications’ hard alloy nozzles. It is preferred
environment-friendly product for factories who have cement and
other working environment and have serious dust pollution to remove
dust and pollution. All kinds of atomized discs have precise sizes
and shapes, fine atomized particle sizes and full combustion. Hard
alloy nozzle is used in oil-fired heating furnace, industrial
furnace of oil burning boiler and other heating furnace for special
use. We also can produce customized hard alloy nozzles according to
drawings. Materials of hard alloy nozzle are YG6,YG8,YG11,YWN8.
Nozzles are built to speed the flow of gases, liquids and slurries
of virtually any viscosity and to withstand punishing wear, erosion
and/or chemical attack in harsh chemical and powder service
environments. They have proved to be a high performance,
long-lasting alternative to hard steel.
Grade List
| Grade | Co (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 |
| Grade | Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) |
| XN100 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 1800 |
| XN101 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 2200 |
| XTN10 | 19.5-20.5 | 6.5-7.5 | 90.5-92.0 | 2800 |
| Grade | Co+Ni (wt%) | Density (g/cm³) | Hardness (HRA) | TRS (≥N/mm²) |
| XTT50 | 14.0-15.0 | 8.9-9.5 | 89.0-91.0 | 1600 |
| XTP10 | 7.0-9.0 | 11.5-13.0 | 89.5-91.0 | 1800 |
Details Of Tumgsten Carbide Nozzle
| Type | Dimension (mm) |
| φC ±0.15 | φA ±0.15 | φB±0.15 | φD ±0.15 |
| XJO1-64 | 6.4 | 20.3 | 15.8 | 6.4 |
| XJO1-71 | 7.1 | 20.3 | 15.8 | 7.1 |
| XJO1-86 | 8.6 | 20.3 | 15.8 | 8.6 |
| XJO1-94 | 9.4 | 20.3 | 15.8 | 9.4 |
| XJO1-109 | 10.9 | 20.3 | 15.8 | 10.9 |
| XJO1-117 | 11.7 | 20.3 | 15.8 | 11.7 |
| XJO1-127 | 12.7 | 20.3 | 15.8 | 12.7 |
| XJO1-142 | 14.2 | 20.3 | 15.8 | 14.2 |
| Type | |
| φB | φA(φD) | φC |
| XJ02-64 | 6.4 | 18.8 | 14.73 |
| XJ02-71 | 7.1 | 18.8 | 14.73 |
| XJ02-86 | 8.6 | 18.8 | 14.73 |
| XJ02-94 | 9.4 | 18.8 | 14.73 |
| XJ02-109 | 10.9 | 18.8 | 14.73 |
| XJ02-117 | 11.7 | 18.8 | 14.73 |
| XJ02-127 | 12.7 | 18.8 | 14.73 |
| Type | Dimension (mm) |
| φA ±0.25 | φB ±0.25 | φC ±0.25 | φD ±0.20 | φE ±0.20 | F ±1 | G ±1 | M ±1 | K ±0.5 |
| XP01-1 | 24.5 | 30.0 | 5.0 | 9.0 | 18.0 | 50.0 | 69.0 | 21.0 | 130.0 |
| XP01-2 | 24.5 | 30.0 | 8.0 | 12.5 | 20.0 | 50.0 | 69.0 | 21.0 | 140.0 |
| XP01-3 | 24.5 | 30.0 | 10.0 | 13.5 | 21.0 | 50.0 | 69.0 | 21.0 | 170.0 |
| XP01-4 | 24.5 | 30.0 | 13.0 | 19.5 | 27.0 | 50.0 | 69.0 | 21.0 | 226.0 |
| XP01-5 | 30.0 | 36.0 | 6.5 | 12.5 | 19.5 | 54.0 | 70.0 | 20.0 | 130.4 |
| XP01-6 | 30.0 | 36.0 | 8.0 | 12.5 | 12.5 | 54.0 | 70.0 | 20.0 | 141.0 |
| XP01-7 | 30.0 | 36.0 | 11.0 | 15.0 | 12.5 | 55.0 | 69.0 | 21.0 | 200.0 |
| Type | Dimension (mm) |
| φA ±0.25 | φB ±0.25 | φC ±0.20 | φD ±0.20 | φE ±0.25 | F ±2 | K ±0.5 |
| XP02-1 | 32.0 | 25.0 | 6.2 | 8.0 | 16.0 | 45.0 | 78.0 |
| XP02-2 | 32.0 | 25.0 | 8.0 | 10.0 | 18.0 | 45.0 | 78.0 |
| XP02-3 | 32.0 | 25.0 | 11.0 | 13.0 | 21.0 | 45.0 | 78.0 |
| XP02-4 | 38.0 | 32.0 | 6.2 | 6.2 | 16.0 | 45.0 | 80.0 |
| XP02-5 | 38.0 | 32.0 | 8.0 | 8.0 | 18.0 | 45.0 | 80.0 |

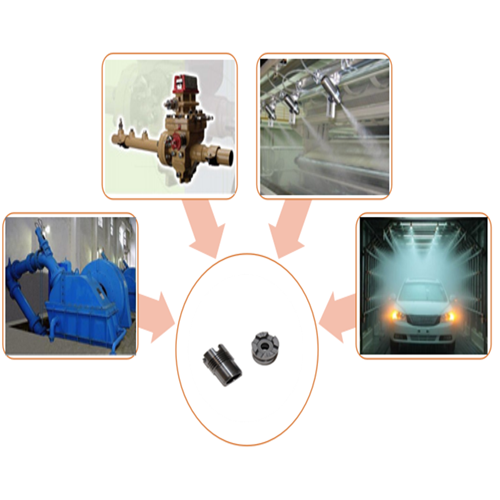

Product Application Scene
Production Process
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are factory.
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is
25-35 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A3: Yes, we could offer the sample for free charge but do not pay
the cost of freight.
Q4: What is your terms of payment ?
A4: Payment<1000USD, 100% in advance. Payment>1000USD, 30%
T/T in advance ,balance before shipment.
