Hydraulic Pump Tungsten Carbide Seal Faces Polished Good Compressive Properties

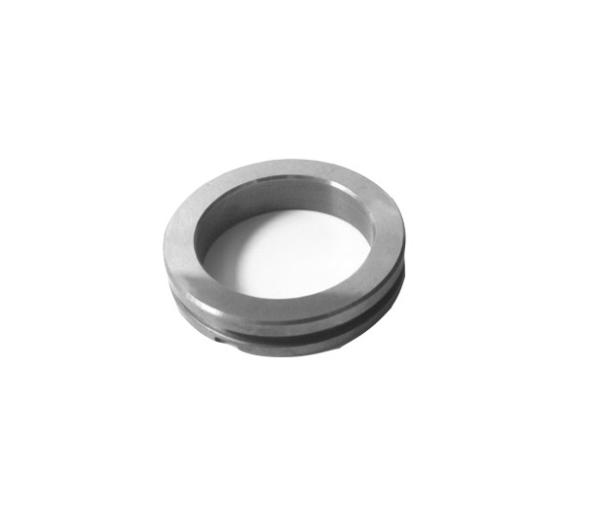

Tungsten Carbide Polished Hydraulic Pump Seal Ring

Product Application

Tungsten Carbide Sealing Ring are used as Mechanical Seal faces in pumps, compressors and agitators. These are uased in oil refineries, petrochemical plants, fertilizer plants and pharmaceutical industries.

1. Petroleum industry
2. Sewerage industry
3. Acid industry
4. Fluidity industry
5. Hydrocarbon industry

Grade	Application Mediums
XC100	oli,sewage,weak acid and alkaline,light hydrocarbon,solid granules
XC101
XC200
XC201
XC401	dry gas seals
XN100	oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules,sea water
XN101
XN300
XN301
XCN30
XCN31
XTP10	oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules
XTN10	oil,sewage,weak acid and alkaline,light hydrocar

Grade	Co (wt%)	Density (g/cm³)	Hardness(HRA)	TRS (≥N/mm²)
XC100	5.8-6.2	14.6-15.0	91.5-92.5	2000
XC101	5.8-6.2	14.6-15.0	91.5-92.5	2500
XC200	7.8-8.2	14.5-14.9	91.0-92.0	2100
XC201	7.8-8.2	13.5-14.9	91.0-92.0	2800
XC300	9.8-10.3	14.2-14.6	90.5-91.5	2600
XC301	9.8-10.3	14.2-14.6	90.5-91.5	3200
XC401	12.7-13.2	14.0-14.3	87.5-88.5	3000
Grade	Ni (wt%)	Density (g/cm³)	Hardness(HRA)	TRS (≥N/mm²)
XN100	6.5-7.5	14.5-14.8	88.5-91.0	1800
XN101	6.5-7.5	14.5-14.8	88.5-91.0	2200
XN300	10.0-11.0	14.2-14.6	86.5-89.5	2100
XN301	10.0-11.0	14.2-14.6	86.5-89.5	2400
XTN10	19.5-20.5	6.5-7.5	90.5-92.0	1600
Grade	Co+Ni (wt%)	Density (g/cm³)	Hardness(HRA)	TRS (≥N/mm²)
XCN 30	9.5-10.5	14.0-14.5	88.0-90.0	2400
XCN31	9.5-10.5	14.0-14.5	88.0-90.0	3200
XTP10	7.0-9.0	11.5-13.0	89.5-91.0	1800

Spec	Dimension & Tolerance
	A1			A2					A3
	d (H13)	D (u6)	H	d (H13)	d1	D (u6)	H	h	d (H13)	d1	D (u6)	H	h
18	19(20)	28(26)	5	19(20)	25(26)	28	5	1.5	19	22	28	5	1.5
20	21(22)	30(28)		21(22)	27(28)	30			21	24	30
22	23(24)	32(30)		23(24)	29(30)	32			23	26	32
24	25(26)	35(32)		25(26)	31(32)	35			25	29	35
25	26(28)	36(34)		26(28)	32(34)	36			26	30	36
28	29(31)	39(37)	6	29(31)	35(37)	39	6		29	33	39	6
30	31(33)	41(39)		31(33)	37(39)	41			31	35	41
32	33(36)	43(42)		33(36)	39(42)	43			33	37	43
33	34(36)	44(42)		34(36)	40(42)	44			34	38	44
35	36(38)	46(44)		36(38)	42(44)	46			36	40	46
38	39(41)	50(47)		39(41)	45(47)	50			39	44	50
40	41(43)	52(49)		41(43)	47(49)	52			41	46	52
43	44(46)	55(52)		44(46)	50(52)	55			44	49	55
45	46(48)	57(54)		46(48)	52(54)	57			46	51	57
48	49(51)	60(57)		49(51)	55(57)	60			49	54	60
50	51(53)	62(59)		51(53)	57(59)	62			51	56	62
53	54(56)	65(62)		54(56)	60(62)	65			54	59	65
55	56(58)	67(64)		56(58)	62(64)	67			56	61	67

Spec	Dimension & Tolerance
Spec	D -0.2	D (H13)	d1 (h8)	L	L1	h1	h	Rubber ring cross-sectionnal diameter
18	32.7	19	26.7	20	8.5	6.5	4	3.55
20	34.7	21	28.7
22	36.7	23	30.7
24	38.7	25	32.7
25	39.7	26	33.7
28	42.7	29	36.7
30	44.7	31	38.7
32	47.7	33	41.7
33	47.7	34	41.7
35	49.7	36	43.7
38	55.7	39	48.7	21	8.9		5	4.1
40	57.7	41	50.7
43	60.7	44	53.7
45	62.7	46	55.7
48	65.7	49	58.7
50	69.7	51	61.7	21.5	8.8			4.7
53	72.7	54	64.7
55	74.7	56	66.7
58	77.7	59	69.7
60	79.7	61	71.7
63	82.7	64	74.7
65	84.7	66	76.7
68	89.7	69	80.6
70	91.7	71	82.6	22.5	9.2			5.3
