3mm 5mm 7mm 9mm 11mm 13mm 15mm Tungsten Carbide Bearing Balls

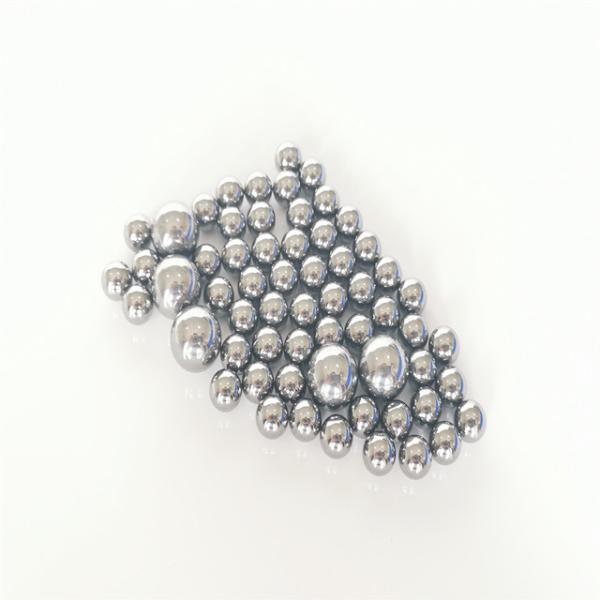

The description of tungsten carbide ball
Tungsten carbide balls are also called cemented carbide balls,
bearing balls or just simply carbide balls. High hardness and
dimensional stability make tungsten carbide balls the preferred
choice for precision hydraulic valves, high-load bearings, inertial
navigation systems, ball screws, linear bearings in sideways,
gauging and checking instruments, and meters. We can manufacture
and supply tungsten carbide balls of different diameters, different
tungsten carbide grades or chemical compositions, different surface
conditions, both in sintered blank and fine grinding
The Application of tungsten carbide ball
The applications of tungsten carbide balls are extremely broad,
such as: precise bearing balls, instruments, meters, pen, spraying
machines, pumps, machinery parts, valve seals, brake pump,
extruding hole, oil, hydroelectric acid lab, hardness measuring
instrument, fishing gear, with heavy, ornamented, finished, and
some other high-end industry!
The characteristics of tungsten carbide ball
Tungsten carbide balls are ideal for applications. It hardness must
be accompanied by high resistance to wear and impact. They are
well-suited to elevated temperatures, corrosion, humidity,
abrasion, and poor lubrication conditions.
The working process of tungsten carbide ball
Heat treating: This high temperature process hardens the ball.
Grinding or polishing: The ball is then ground to the approximate
diameter of the finished tungsten carbide balls. This polishing
process the ball to the exact size required.
Grade List
Cobalt Binder Grades |
|
Grade | Binder(wt%) | Density(g/cm3) | Hardness(HRA) | TRS(≥N/mm2) |
YG3 | 3 | 15.30 | 91.00 | 1180 |
YG6 | 6 | 15.10 | 92.00 | 1420 |
YG6X | 6 | 15.10 | 91.00 | 1600 |
YG8 | 8 | 14.90 | 90.00 | 1600 |
YG10 | 10 | 14.70 | 89.00 | 1900 |
YG10X | 10 | 14.70 | 89.50 | 2200 |
YG15 | 15 | 14.20 | 87.00 | 2100 |
YG20 | 20 | 13.70 | 85.50 | 2500 |
YG20C | 20 | 13.70 | 82.00 | 2200 |
YG30 | 30 | 12.80 | 82.00 |
|
| Ball dimension (mm) |
| D±1.27(mm) |
| 15.88 |
| 19.05 |
| 23.83 |
| 28.58 |
| 31.75 |
| 34.93 |
| 42.88 |
| 57.15 |
Model/Item | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) | 15.88
(0.625in) | 19.05
(0.75in) | 23.83
(0.938in) | 28.58
(1.125in) | 31.75
(1.25in) | 34.93
(1.375in) | 42.88
(1.688in) | 57.15
(2.25in) |
Seat-ID
± 0.050 (± 1.27) | 11.68
(0.46in) | 13.97
(0.55in) | 17.02
(0.67in) | 20.96
(0.825in) | 24.38
(0.96in) | 26.92
(1.06in) | 33.27
(1.31in) | 43.18
(1.7in) |
Seat-OD
+0.000/-0.005
(+0.00/-0.13) | 20.14
(0.793in) | 23.32
(0.918in) | 29.67
(1.168in) | 35.26
(1.388in) | 37.54
(1.478in) | 43.69
(1.72in) | 51.05
(2.01in) | 78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 12.70
(0.500in) | 19.05
(0.750in) |
| 10600 | 12500 | 15000 | 17500 | 20000 | 22500 | 25000 | 37500 |
D
(customized) | Inch | 0.625 | 0.725 | 0.938 | 1.125 | 1.250 | 1.375 | 1.688 | 2.250 |
| mm | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 |
H -0.020/-0.010
(+0.51/0.25) | Inch | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.750 |
| mm | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 12.70 | 19.05 |
FZ +0.000/-0.031
(+0.00/-0.78) | Inch | 0.767 | 0.892 | 1.11 | 1.331 | 1.421 | 1.631 | 1.921 | 2.950 |
| mm | 19.48 | 22.66 | 28.22 | 33.81 | 36.09 | 41.43 | 48.79 | 74.93 |
OD +0.000/-0.005
(-0.00/-0.13) | Inch | 0.793 | 0.918 | 1.168 | 1.388 | 1.478 | 1.720 | 2.010 | 3.072 |
| mm | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 |
ID +/-0.050
(+/-1.27) | Inch | 0.460 | 0.550 | 0.670 | 0.825 | 0.960 | 1.060 | 1.310 | 1.700/1.800 |
| mm | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18/47.75 |
Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
Ball-D
+0.020/-0.010
(+0.51/-0.25) |
15.88
(0.625in) |
19.05
(0.75in) |
23.83
(0.938in) |
28.58
(1.125in) |
31.75
(1.25in) |
34.93
(1.375in) |
42.88
(1.688in) |
57.15
(2.25in) |
Seat-ID
± 0.050
( ± 1.27) |
11.68
(0.46in) |
13.97
(0.55in) |
17.02
(0.67in) |
20.96
(0.825in) |
24.38
(0.96in) |
26.92
(1.06in) |
33.27
(1.31in) |
43.18
(1.7in) |
Seat-OD
+0.000/-0.005
+0.00/-0.13 |
20.14
(0.793in) |
23.32
(0.918in) |
29.67
(1.168in) |
35.26
(1.388in) |
37.54
(1.478in) |
43.69
(1.72in) |
51.05
(2.01in) |
78.03
(3.072in) |
Seat-H
+0.020/-0.010
(+0.51/-0.25) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.500
(12.70in) |
0.750
(19.05in) |
| Seats sizes(mm) |
| Outer diameter | Inner diameter | Height |
| 19.48 | 11.68 | 12.7 |
| 22.66 | 13.97 | 12.7 |
| 28.22 | 17.02 | 12.7 |
| 33.81 | 20.96 | 12.7 |
| 36.09 | 24.38 | 12.7 |
| 41.43 | 26.92 | 12.7 |
| 48.79 | 33.27 | 12.7 |
| 74.93 | 43.18 | 19.05 |
| Type and specifications |
| Dia. | Inch | 3/4 | 7/8 | 15/16 | 1 | 1 1/8 | 1 3/16 |
| mm | 19.05 | 22.225 | 23.813 | 25.4 | 28.575 | 30.163 |
| Inch | 1 1/4 | 1 3/8 | 1 1/2 | 1 5/8 | 1 11/16 | 1 3/4 |
| mm | 31.75 | 34.925 | 38.1 | 41.275 | 42.863 | 44.45 |
| Inch | | 2 | 1 1/4 | | 2 1/2 | |
| mm | 50 | 50.8 | 57.15 | 60 | 63.5 | |
| The surface finish, tolerance class and tolerances of dimensions
have respectively reached the standards of the machine industry:
G5, G10, G16, G40 and G100 G1000of JB/T 9145-199 |
Production Process
FAQ
Q1: How long is your delivery period?
A1: It depends on specific conditions. However, it could be 10 to
15 days on average.
Q2: Do you offer samples?
A2: Yes, we do offer samples. However, buyers need to pay for the
freight charge. In addition, whether samples are free or not
depends on the quantity you buy.
Q3: How do you pack the products?
A3: In general, we use wood, plastic or carton boxes. We also put
some soft materials inside to prevent possible damage on products.
Q4: How much advance payment do I need to make?
A4: If the products you buy are in stock, you need to make full
payment; if the products are out of stock, you need to make about
50 percent of full payment and then we will start the production
process. However, you still need to pay the rest of charges before
we deliver the products.
Q5: What kinds of payment do you accept?
A5: In addition to the patterns of payment shown above, you can
discuss with us about in which way you would like to pay.
Please contact us if you have any other questions.
