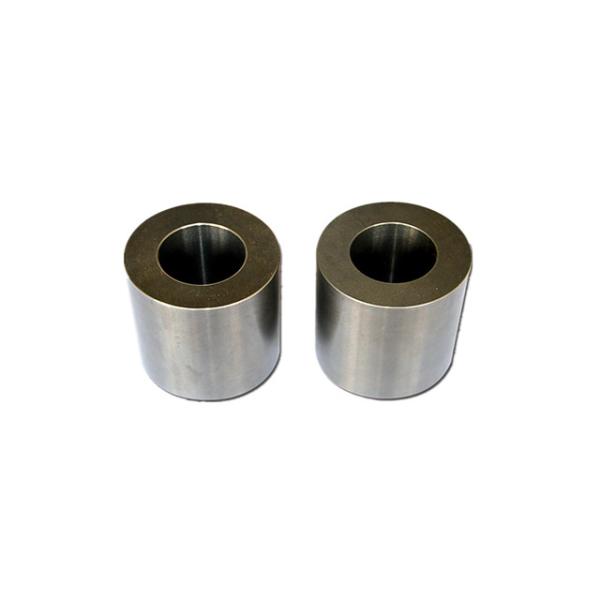

Professional Customization Cemented Tungsten Carbide Bushing /
Shaft Sleeves
The Details of tungsten carbide bushing
Tungsten carbide material features extreme wear resistance and
hardness. The material is typically forged by the reaction of
tungsten (W) metal and carbon (C) at 1400 to 2000. The result is a
grey powder that can be pressed and formed into virtually any
shape. When processing the powder into a shape, manufacturers use
either a nickel or cobalt-bonding agent. Several chemical
compositions can be used to provide better properties for varying
applications.
Properties of the 80-94% WC 6-20% Ni
Density : 13.8-15 g/cm3
Hardness : 81.5-89.5 HRA
Bending strength : 1500-2250 N/mm²
The Product Description Of Tungsten Carbide Bushing Sleeve For Pump
Tungsten carbide bushing set up by virgin tungsten carbide
material. It’s shows high hardness and bending strength. That has
superior performance on resisting abrasion and corrosion, which is
widely used in many industries
For its widely usage. Tungsten carbide bushing are often made with
high accuracy, and owing to their perfect finish, precise
dimension, durability and corrosion resistance. These are highly
appreciated by the clients at home and aboard.
In addition, differ from the various of application environment.
There are several types of Tungsten carbide bushing. Most of the
specifications are all customized.
The Product feature of Tungsten Carbide Bushing Sleeve for Pump
1. High hard resistance
2. High corrosion resistance
3. Pressured resistance
4. Wear resistance
5. High bending strength
Cemented carbide bushing made by virgin tungsten carbide material.
It obtain high hardness and bending strength. It has superior
performance on abrasion and corrosion resistance, which is widely
used in many industries.
For its widely usage. Tungsten carbide bushing are often made with
high accuracy, and owing to their perfect finish, precise
dimension, durability and corrosion resistance. These are highly
appreciated by the clients at home and aboard.
In addition, as the various of application environment, There are
several types of Tungsten carbide bushing. Most of the
specifications are all customized.
Grade List
Grade | Density | T.R.S. MPa | Performance & application recommended |
YG6A | 14.95 | 1800 | Fine grain alloy, good wear resistance. Semi-finishing of chilled
cast iron, non-ferrous metals alloys, semi-finishing and finishing
of hardened steel, alloy steel. |
YG8 | 14.8 | 2200 | High strength in use, impact and shock resistance higher than YG6,
but wear resistance and cutting speed comparatively lower |
YN8 | 14.7 | 2000 | Corrosion Resistant, It widely used in chemical and petroleum pumps |
YG10 | 14.5 | 2400 | High strength in use, impact and shock resistance higher than YG6,
but wear resistance and cutting speed comparatively lower. Roughing
of cast irons, non-ferrous metals and their alloys as well as non
metallic materials at low cutting speed. |
YL10.2 | 14.5 | 2400 | Fine grain alloy, good wear resistance. Used for processing hard
wood, veneer board, PCB, PVC and metals |
YG20 | 14.3 | 2420 | Conventional wear resistance, high bending strength,used for steel
alloy etc. |
Details Carbide Bushing
| Deimensions of A Type Straight Sleeves (mm) |
|
| Type No. | D | d | H | C |
| XA1 | 14.5-20 | 12.16 | 6.0-10.0 | 1.3 |
| XA2 | 12.5 | 3.5-7.0 | 12.7 | 4.5 |
| XA3 | 21-60 | 15-50 | 51 | 3 |
| XA4 | 75-130 | 60-115 | 55-100 | 6 |
| XA5 | 140-300 | 120-200 | 60-150 | 10 |
| Deimensions of A Type Straight Sleeves (mm) |
|
| D | d | C | H |
| 25.0-30.0 | 9.0-14.0 | 2.0-3.5 | 21.0-25.0 |
| 31.0-50.0 | 14.0-35.0 | 2.0-3.5 | 21.0-25.0 |
| 60.0-100.0 | 47.0-85.0 | 2.0-3.5 | 30.0-70.0 |
| Deimensions of A Type Straight Sleeves (mm) |
|
| D | d | H | a |
| 20.0-40.0 | 17.0-30.0 | 10.0-36.0 | 1.6 |
| 41.0-80.0 | 31.0-70.0 | 10.0-36.0 | 3.2 |
Product Application Scene
Production Process
FAQ
Q1: Is Xingyu trading company or manufacturer ?
A1: We are manufacture of tungsten carbide since established on
1998,specializing in carbide plates/bushings/rollers/special wear
parts.
Q2: Has Xingyu acquired the foremost certification of ISO 9001?
A2: Xingyu has been endorsed with the ISO 9001 rating since 2008.
Q3: When can I get the offer after sending inquiry?
A3: We usually quote within 24 hours after we get your inquiry .If
you are very urgent to get the price please call us or tell us in
your email so that we will regard your inquiry priority.
Q4: Could Xingyu sales staff be reached anytime for assistance
regarding orders or general enquire ?
A4: Our sales staff operates between 8am-5pm Monday to Saturday.
