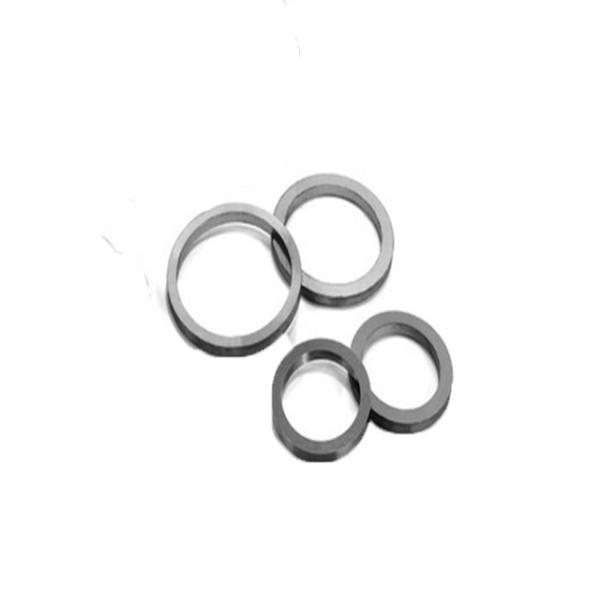

Customized Shaft Seal Ring Tungsten Carbide Seal Sic Silicone Ring
Different tungsten carbide ring Applicatioin
Our sealing rings are used in many different mechanical seal
industries.
Carbide seal ring property
The characteristics of abrasive resistance, corrosion resistance
and stable property performance, high fracture strength , thermal
wear, durable;
1. High precision, high hardness,various size and o type ring,the
maximun OD can reach 500mm;
2. Tungsten carbide material,mechanical rotary files,seal
ring,stable performance, low maintenance and friction,surface
polished,new model can be designed;
3. Factory wholesale price,customise service according to your
needs.
We can supply various kinds of tungsten carbide rings , such as
dynamic and static rings , the dynamic and static ring is also
named sealing rings used for mechanical seal and it also suitable
for the equipment which's grinding medium between 0.2 and 0.6mm ,
grinding & dispersing size between 100and 500 nano.
| Grade | Application Mediums |
| XC100 | oli,sewage,weak acid and alkaline,light hydrocarbon,solid granules |
| XC101 |
| XC200 |
| XC201 |
| XC401 | dry gas seals |
| XN100 | oil,sewage,weak acid and alkaline,light hydrocarbon,solid
granules,sea water |
| XN101 |
| XN300 |
| XN301 |
| XCN30 |
| XCN31 |
| XTP10 | oil,sewage,weak acid and alkaline,light hydrocarbon,solid granules |
| XTN10 | oil,sewage,weak acid and alkaline,light hydrocar |
| Grade | Co (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) |
| XC100 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2000 |
| XC101 | 5.8-6.2 | 14.6-15.0 | 91.5-92.5 | 2500 |
| XC200 | 7.8-8.2 | 14.5-14.9 | 91.0-92.0 | 2100 |
| XC201 | 7.8-8.2 | 13.5-14.9 | 91.0-92.0 | 2800 |
| XC300 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 2600 |
| XC301 | 9.8-10.3 | 14.2-14.6 | 90.5-91.5 | 3200 |
| XC401 | 12.7-13.2 | 14.0-14.3 | 87.5-88.5 | 3000 |
| Grade | Ni (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) |
| XN100 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 1800 |
| XN101 | 6.5-7.5 | 14.5-14.8 | 88.5-91.0 | 2200 |
| XN300 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2100 |
| XN301 | 10.0-11.0 | 14.2-14.6 | 86.5-89.5 | 2400 |
| XTN10 | 19.5-20.5 | 6.5-7.5 | 90.5-92.0 | 1600 |
| Grade | Co+Ni (wt%) | Density (g/cm³) | Hardness(HRA) | TRS (≥N/mm²) |
| XCN 30 | 9.5-10.5 | 14.0-14.5 | 88.0-90.0 | 2400 |
| XCN31 | 9.5-10.5 | 14.0-14.5 | 88.0-90.0 | 3200 |
| XTP10 | 7.0-9.0 | 11.5-13.0 | 89.5-91.0 | 1800 |
| Spec | Dimension & Tolerance |
| A1 | A2 | A3 |
| d (H13) | D (u6) | H | d (H13) | d1 | D (u6) | H | h | d (H13) | d1 | D (u6) | H | h |
| 18 | 19(20) | 28(26) | 5 | 19(20) | 25(26) | 28 | 5 | 1.5 | 19 | 22 | 28 | 5 | 1.5 |
| 20 | 21(22) | 30(28) | 21(22) | 27(28) | 30 | 21 | 24 | 30 |
| 22 | 23(24) | 32(30) | 23(24) | 29(30) | 32 | 23 | 26 | 32 |
| 24 | 25(26) | 35(32) | 25(26) | 31(32) | 35 | 25 | 29 | 35 |
| 25 | 26(28) | 36(34) | 26(28) | 32(34) | 36 | 26 | 30 | 36 |
| 28 | 29(31) | 39(37) | 6 | 29(31) | 35(37) | 39 | 6 | 29 | 33 | 39 | 6 |
| 30 | 31(33) | 41(39) | 31(33) | 37(39) | 41 | 31 | 35 | 41 |
| 32 | 33(36) | 43(42) | 33(36) | 39(42) | 43 | 33 | 37 | 43 |
| 33 | 34(36) | 44(42) | 34(36) | 40(42) | 44 | 34 | 38 | 44 |
| 35 | 36(38) | 46(44) | 36(38) | 42(44) | 46 | 36 | 40 | 46 |
| 38 | 39(41) | 50(47) | 39(41) | 45(47) | 50 | 39 | 44 | 50 |
| 40 | 41(43) | 52(49) | 41(43) | 47(49) | 52 | 41 | 46 | 52 |
| 43 | 44(46) | 55(52) | 44(46) | 50(52) | 55 | 44 | 49 | 55 |
| 45 | 46(48) | 57(54) | 46(48) | 52(54) | 57 | 46 | 51 | 57 |
| 48 | 49(51) | 60(57) | 49(51) | 55(57) | 60 | 49 | 54 | 60 |
| 50 | 51(53) | 62(59) | 51(53) | 57(59) | 62 | 51 | 56 | 62 |
| 53 | 54(56) | 65(62) | 54(56) | 60(62) | 65 | 54 | 59 | 65 |
| 55 | 56(58) | 67(64) | 56(58) | 62(64) | 67 | 56 | 61 | 67 |
| Spec | Dimension & Tolerance |
| D -0.2 | D (H13) | d1 (h8) | L | L1 | h1 | h | Rubber ring cross-sectionnal diameter |
| 18 | 32.7 | 19 | 26.7 | 20 | 8.5 | 6.5 | 4 | 3.55 |
| 20 | 34.7 | 21 | 28.7 |
| 22 | 36.7 | 23 | 30.7 |
| 24 | 38.7 | 25 | 32.7 |
| 25 | 39.7 | 26 | 33.7 |
| 28 | 42.7 | 29 | 36.7 |
| 30 | 44.7 | 31 | 38.7 |
| 32 | 47.7 | 33 | 41.7 |
| 33 | 47.7 | 34 | 41.7 |
| 35 | 49.7 | 36 | 43.7 |
| 38 | 55.7 | 39 | 48.7 | 21 | 8.9 | 5 | 4.1 |
| 40 | 57.7 | 41 | 50.7 |
| 43 | 60.7 | 44 | 53.7 |
| 45 | 62.7 | 46 | 55.7 |
| 48 | 65.7 | 49 | 58.7 |
| 50 | 69.7 | 51 | 61.7 | 21.5 | 8.8 | 4.7 |
| 53 | 72.7 | 54 | 64.7 |
| 55 | 74.7 | 56 | 66.7 |
| 58 | 77.7 | 59 | 69.7 |
| 60 | 79.7 | 61 | 71.7 |
| 63 | 82.7 | 64 | 74.7 |
| 65 | 84.7 | 66 | 76.7 |
| 68 | 89.7 | 69 | 80.6 |
| 70 | 91.7 | 71 | 82.6 | 22.5 | 9.2 | |
