High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife

    Buy cheap High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife from wholesalers

    Buy cheap High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife from wholesalers
    • Buy cheap High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife from wholesalers
    • Buy cheap High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife from wholesalers

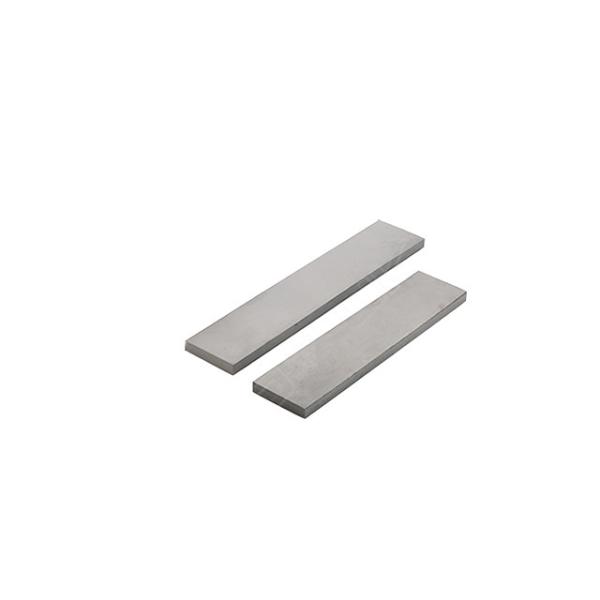

    High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife

    Ask Lasest Price
    Brand Name : XYMJ
    Model Number : Customized
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 2000 kilograms per month
    Delivery Time : 7-15
    • Product Details
    • Company Profile

    High Wear Resistance Tungsten Carbide Flat Bar For Paper Cutting Knife

    Tungsten Carbide Flat Bar For Paper Cutting Knife With High Wear-resistance


    Tungsten Carbide Strips


    The main composition of tungsten carbide strips is tungsten carbide powders and cobalt powders .With its wear resistant and corrosion resistant ability , tungsten carbide nowadays is widely used in many areas such as : cutting tools , moulds , oil and automobile industry etc .

    Tungsten carbide strip is used as the cutter for the TCT woodworking knives for cutting all kinds of original wood , hard wood , HDF, MDF , plywood , particle board , laminated board, composite material ,grass, aluminum and metals . It can give much more excellent performance than HSS .


    Tungsten carbide plates


    We make wear parts in tungsten carbide, Over 20 Years' efforts in making high quality tungsten carbide products.Almost10 years in doing importing and exporting business.Rich experience in grade researching, mould designing, automatic press, HIP sintered, surface treating and quality control.Good quality and large stock.any customized drawing is welcomed,Different grades are available, such as in grade K10, K20, K30, or non magnetic carbideYG8, YG15, YG6, YG11C, YG20,YG25C


    Product Description


    Tungsten carbide strip has high hardness and high wear resistance, it is a ideal choice to used in cutting kinds of wood.

    With high quality raw material and advanced equipment, we are provides customer superior quality carbide strips.
    1. Easy to be brazed, good wear resistance and toughness.
    2. Untrafine grain size raw material to keep excellent strength and hardness.
    3. Both standard sizes and customizes sizes are available.


    Product application of tungsten carbide strip


    1. To make punching dies

    2. To make wear-resistant tools.

    3. To make high temperature resistant parts, wear parts and anti-shielding parts

    4. To make corrosion-resistant parts for the chemical industry.

    5. To used as radiation and corrosion resistant materials for medical equipment.


    Details of tungsten carbide plate


    GradeYG6AYG8YG15YG20YS2T
    ISO CodeK10K20K30-40K05K10-K20
    Co%68152015
    Wc%9492858085
    DensityG/cm314.914.714.513.514.5
    T.R.SMpa18502400250028002350
    HardnessHRA9289.587.585.592

    Grade List


    GradeISO CodeChemical Composition(%)Physical Mechanical Properties (≥)Application
    WCCoDensity g/cm3Hardness(HRA)T.R.S N/mm2
    YG3K0197314.9091.001180Suitable for finishing of cast iron,non-ferrous metals,alloys and non-metallic materials,and semi-finishing vehicles for intermittent cutting.
    YG6K1094615.1092.001420Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron.
    YG6XK2094615.1091.001600Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
    YG8K20-K3092814.9090.001600Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials, roughing of sections and rough cutting.
    YG10K40901014.7089.001900Suitable for the production of drawing dies, wear parts and stamping parts and cores for hard alloy automatic presses.
    YG10XK40891014.7089.502200Suitable for small diameter micro drills, end mills, rotary boring tools, etc.
    YG15K30851514.7087.002100Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses.
    YG20K30802013.7085.502500Stamping die, stamping watch parts, musical instrument spring piece.
    YG20CK40802013.7082.002200punching battery case, toothpaste skin mold, small size steel ball, screw, nut stamping die, hot rolling twist drill bit plate.
    YG30G60703012.8082.002750Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die.

    ISO CodeGrain Size (μm)Co (mass) %TRS (GPa) *1HardnessApplicationWork Material
    HRA *2HV *3For Automatic LathesCemented Carbide PlatesGeneral SteelStainless SteelCast IronNon-ferrous MetalHeat Resistant Alloy
    Cemented CarbideK20＜0.9102.5911550√√O
    K10＜1.062921700√√OO
    M20＜3.09290.51450√√OO
    CermetP10＜2.018291.21500√O
    P20＜2.019290.51450√O

    Detail Specification For Tungsten Carbide Strips



    Type NumberDimensions(mm)
    LLT
    18*13*T18±0.513±0.42~8﹢0.5
    18*15*T18±0.515±0.42~8﹢0.5
    18*18*T18±0.518±0.42~12﹢0.5
    19*5*T19±0.55±0.32~8﹢0.5
    19*8*T19±0.58±0.32~8﹢0.5
    19*11*T19±0.511±0.42~8﹢0.5
    19*13*T19±0.513±0.42~8﹢0.5
    20*2*T20±0.52±0.32~4﹢0.5
    20*3*T20±0.53±0.32~5﹢0.5
    20*4*T20±0.54±0.32~7﹢0.5
    20**T20±0.55±0.32~8﹢0.5
    20*3*T20±0.56±0.32~8﹢0.5
    20*7*T20±0.57±0.32~8﹢0.5
    20*8*T20±0.58±0.32~7﹢0.5
    20*9*T20±0.59±0.32~8﹢0.5
    20*10*T20±0.510±0.32~8﹢0.5
    20*12*T20±0.512±0.42~8﹢0.5
    20*15*T20±0.515±0.42~12﹢0.5
    20*18*T20±0.518±0.42~12﹢0.5
    20*20*T20±0.520±0.42~12﹢0.5
    21*3*T21±0.53±0.32~7﹢0.5
    21*7*T21±0.57±0.32~7﹢0.5
    21*8*T21±0.58±0.32~8﹢0.5
    21*9*T21±0.59±0.32~8﹢0.5
    21*13*T21±0.513±0.42~7﹢0.5
    21*20*T21±0.520±0.42~12﹢0.5
    21*21*T21±0.521±0.42~12﹢0.5
    22*3*T22±0.53±0.32~6﹢0.5
    22*5*T22±0.55±0.32~8﹢0.5
    22*8*T22±0.58±0.32~8﹢0.5
    22*12*T22±0.512±0.42~8﹢0.5
    22*15*T22±0.515±0.42~8﹢0.5
    22*22*T22±0.522±0.42~26﹢0.5
    23*4*T23±0.54±0.32~7﹢0.5
    23*8*T23±0.58±0.32~8﹢0.5
    23*14*T23±0.514±0.42~12﹢0.5
    24*10*T24±0.510±0.32~8﹢0.5
    24*12*T24±0.512±0.42~6﹢0.5
    24*24*T24±0.524±0.42~12﹢0.5
    25*4*T25±0.54±0.32~8﹢0.5

    Type NumberDimensions(mm)
    LLT
    25*6*T25±0.56±0.32~8﹢0.5
    25*8*T25±0.58±0.32~8﹢0.5
    25*9*T25±0.59±0.32~11﹢0.5
    25*10*T25±0.510±0.32~12﹢0.5
    25*11*T25±0.511±0.42~8﹢0.5
    25*12*T25±0.512±0.42~12﹢0.5
    25*15*T25±0.515±0.42~10﹢0.5
    25*17*T25±0.517±0.42~10﹢0.5
    26*4*T26±0.54±0.32~8﹢0.5
    26*7*T26±0.57±0.32~8﹢0.5
    26*8*T26±0.58±0.32~8﹢0.5
    26*9*T26±0.59±0.32~8﹢0.5
    27*5*T27±0.55±0.32~8﹢0.5
    27*7*T27±0.57±0.32~7﹢0.5
    27*12*T27±0.512±0.42~8﹢0.5
    28*11*T28±0.511±0.42~12﹢0.5
    28*12*T28±0.512±0.42~8﹢0.5
    28*14*T28±0.514±0.42~14﹢0.5
    28*15*T28±0.515±0.42~8﹢0.5
    29*3*T29±0.53±0.32~8﹢0.5
    30*3*T30±0.53±0.32~8﹢0.5
    30*5*T30±0.55±0.32~8﹢0.5
    30*6*T30±0.56±0.32~10﹢0.5
    30*9*T30±0.59±0.32~11﹢0.5
    30*10*T30±0.510±0.32~12﹢0.5
    30*16*T30±0.516±0.42~12﹢0.5
    30*20*T30±0.520±0.42~10﹢0.5
    30*25*T30±0.525±0.52~14﹢0.5
    31*4*T31±0.54±0.32~7﹢0.5
    31*5*T31±0.55±0.32~13﹢0.5
    31*6*T31±0.56±0.32~10﹢0.5
    31*21*T31±0.521±0.42~12﹢0.5
    32*12*T32±0.512±0.42~15﹢0.5
    33*5*T33±0.55±0.32~12﹢0.5
    33*12*T33±0.512±0.42~7﹢0.5
    33*18*T33±0.518±0.42~11﹢0.5
    33*22*T33±0.522±0.42~10﹢0.5
    35*4*T35±0.54±0.32~8﹢0.5
    35*8*T35±0.58±0.32~12﹢0.5
    35*10*T35±0.510±0.32~14﹢0.5

    Type NumberDimensions(mm)
    LLT
    35*13*T35±0.713±0.42~12﹢0.5
    35*20*T35±0.720±0.42~12﹢0.5
    36*5*T36±0.75±0.32~12﹢0.5
    36*7*T36±0.77±0.32~10﹢0.5
    36*9*T36±0.79±0.32~7﹢0.5
    38*24*T38±0.724±0.42~11﹢0.5
    39*4*T39±0.74±0.32~8﹢0.5
    39*28*T39±0.728﹢0.52~12﹢0.5
    40*2*T40±0.72±0.32~10﹢0.5
    40*4*T40±0.74±0.32~12﹢0.5
    40*6*T40±0.76±0.32~12﹢0.5
    40*10*T40±0.710±0.22~11﹢0.5
    40*15*T40±0.715±0.42~15﹢0.5
    40*16*T40±0.716±0.42~12﹢0.5
    42*20*T42±0.720±0.42~11﹢0.5
    43*9*T43±0.79±0.32~12﹢0.5
    45*6*T45±0.76±0.32~12﹢0.5
    47*2*T47±0.72±0.32~12﹢0.5
    50*2*T50±1.52﹢0.32~10﹢0.5
    50*3*T50±1.53﹢0.32~12﹢0.5
    50*4*T50±1.54﹢0.32~11﹢0.5
    50*5*T50±1.55﹢0.32~11﹢0.5
    50*6*T50±1.56﹢0.32~14﹢0.5
    50*7*T50±1.57﹢0.42~8﹢0.5
    50*8*T50±1.58﹢0.42~12﹢0.5
    50*9*T50±1.59﹢0.42~10﹢0.5
    50*10*T50±1.510﹢0.42~12﹢0.5
    50*12*T50±1.512﹢0.52~12﹢0.5
    50*15*T50±1.515﹢0.52~15﹢0.5
    51*3*T51±1.53﹢0.32~12﹢0.5
    51*4*T51±1.54﹢0.32~10﹢0.5
    51*5*T51±1.55﹢0.32~12﹢0.5
    51*12*T51±1.512﹢0.52~12﹢0.5
    52*3*T52±1.53﹢0.32~12﹢0.5

    Type NumberDimensions(mm)
    LLT
    52*4*T52±1.54﹢0.32~12﹢0.5
    55*6*T55±1.56﹢0.32~12﹢0.5
    55*20*T55±1.520﹢0.52~12﹢0.5
    55*30*T55±1.530±1.02~11﹢0.5
    60*2*T60±1.52±0.32~13﹢0.5
    60*3*T60±1.53±0.32~10﹢0.5
    60*6*T60±1.56±0.32~10﹢0.5
    60*30*T60±1.530﹢0.6
